Benefits:

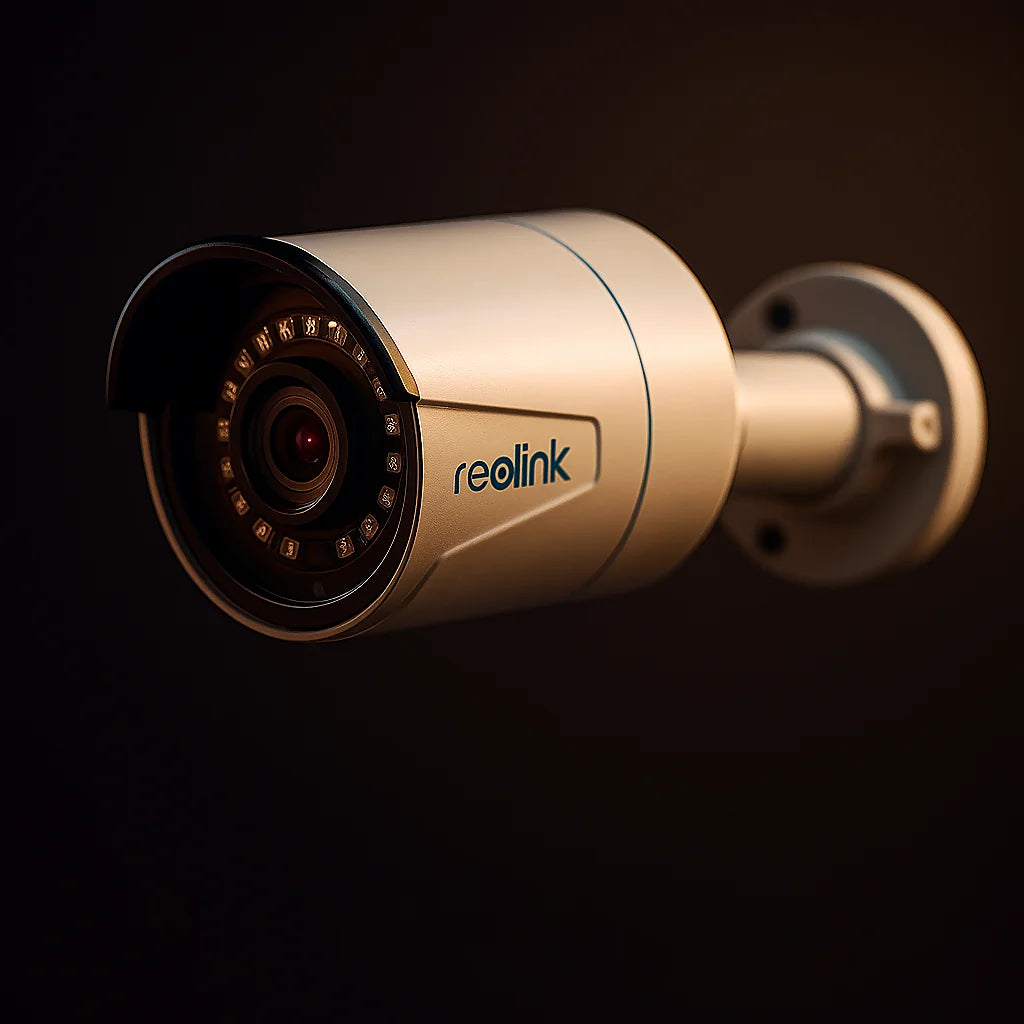

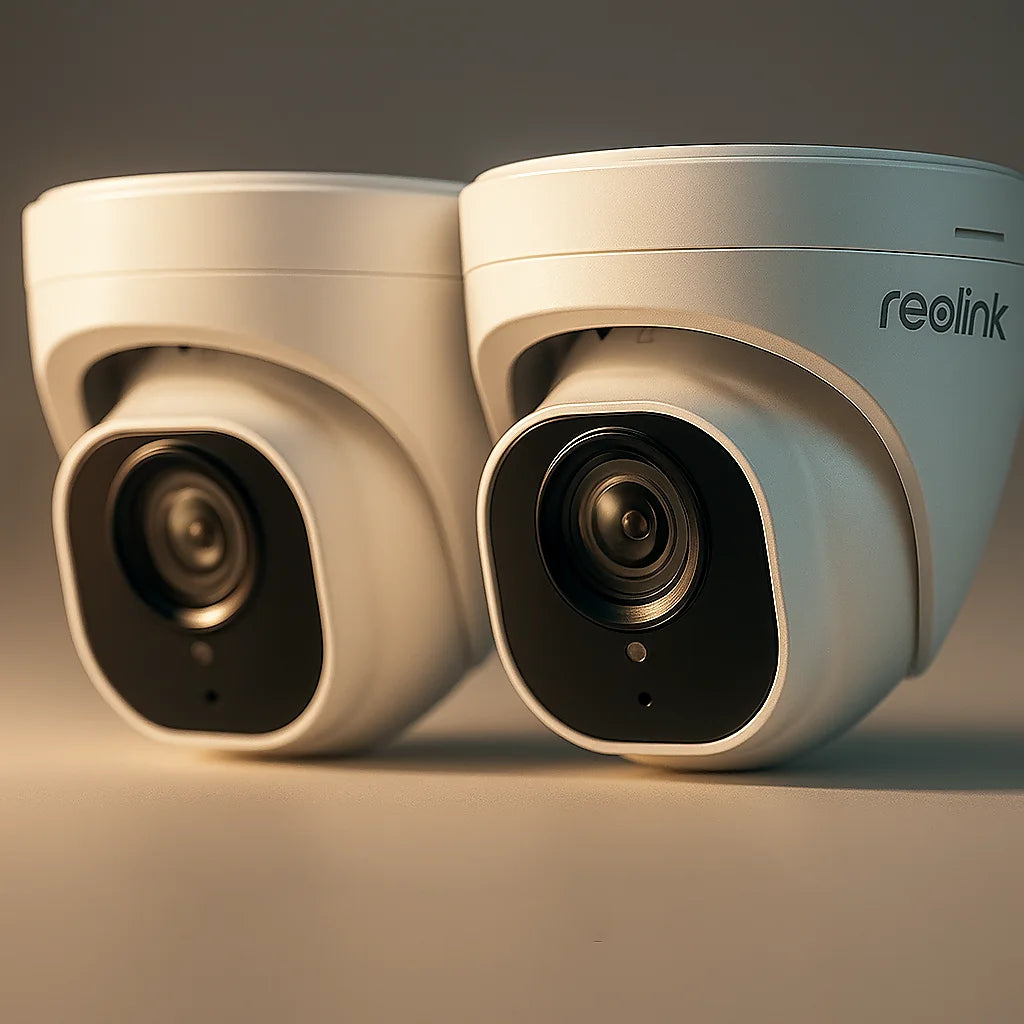

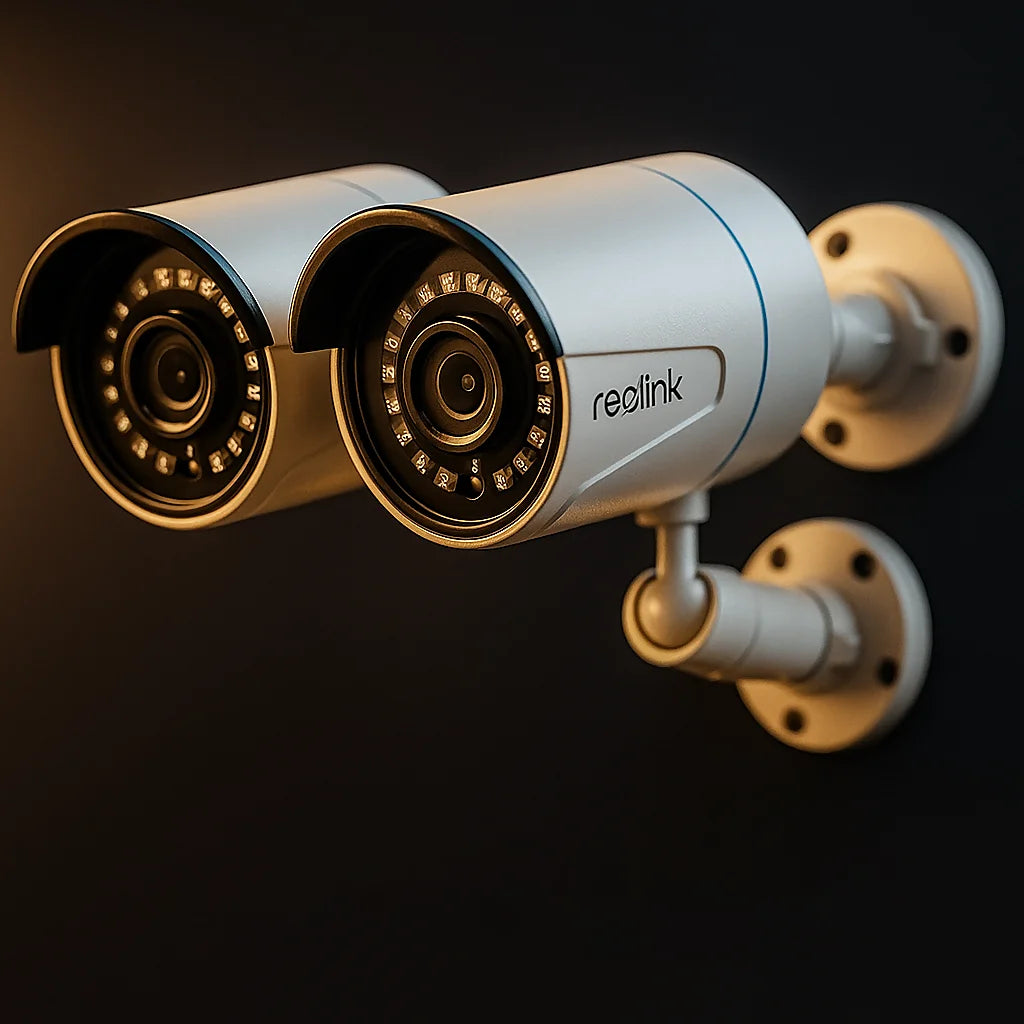

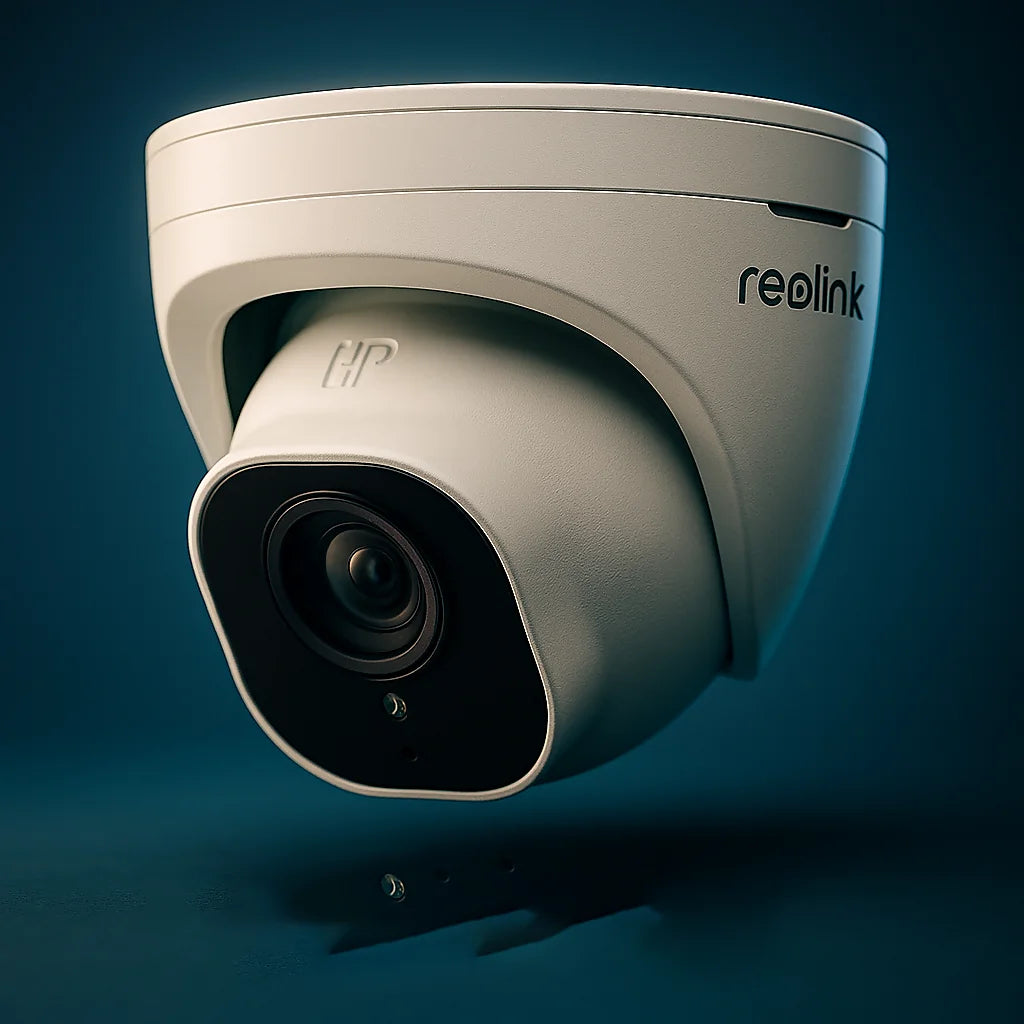

Reolink 5MP PoE Outdoor Security Camera
Protect your home with ultra clear 5MP video, smart motion detection for people and vehicles, and infrared night vision up to 100ft. Easy PoE setup with weatherproof design. View live or recorded footage anytime via the Reolink app no monthly fees.
SPECIFICATIONS
AI Functions: Human Detection
Alarm Action: FTP Photo, Email Photo
App name: other
Audio: Built-in microphone, Audio recording
Audio Output: None
Brand Name: Reolink
Browser Supported: IE, Edge, Chrome, Firefox, Safari
Certification: CE,FCC,RoHS
Color: WHITE
Color Night Vision: No
Connectivity: IP/Network Wired
Dimension: 105*93mm
Dimensions (L x W x D)(mm): 22cm x 15cm x 13cm
High Definition: 5.0 Megapixels
Hign-concerned Chemical: None
IP Rating: IP66
IR Distance(m): 30M
Installation: Normal
Internal Storage: None
Lens (mm): 4mm
Lens Quantity: Single Lens
Maximal User Access: 20 users (1 admin account & 19 user accounts)
Megapixels: 5MP
Minimum Illumination(Lux): 0
Model Number: 5MP Dome security protection
Movement Range(Pan): other
Movement Range(Tilt): other
Operating Temperature: -10°-55°
Outdoor Camera Night Vision: 30 meters (100 ft)
Outdoor Camera Waterproof: IP66 ip camera
Power Consumption(W): 5W Surveillance camera
Power Mode: Mains Electricity
Power Supply: With Poe
Power Supply(V): 12V
Protocols & Standards: HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Rechargeable Battery: None
Record Mode: Motion-triggered recording (default); 24/7 recording; scheduled recording
Scene: Indoor and outdoor
Security Camera Operating Temperature: -10°C ~ +55°C (14°F ~ 131°F)
Security IP Camera Storage: Micro SD card (Max. 256GB)
Sensor: CMOS
Sensor Brand: Omnivision
Shell Material: Metal
Smart Alarm: Motion Detection/Human Detection/Car Detection
Smart Home: Google Assistant
Smart home platform: Google Assistant
Special Features: Waterproof / Weatherproof
Style: Dome Camera
Supported Mobile Systems: Android,iOS
Supported Operating Systems: Windows 7,Mac OS,Windows 8,Windows 10
Video Compression Format: H.264
Video Resolution: 2560 x 1920 (5.0 Megapixels) security camera
Viewing Angle : 85°
Weight: 467.5g
Zoom: 10X
Zoom type: Digital zoom
is_customized: No
Please Note:
Product appearance may vary slightly due to lighting, packaging updates, or minor design changes. Functionality and features remain exactly as described.
Q: The poe power came from the nvr or you need and aditional inyector to power the cameras?
A: Hello, you can either PoE powered it via your Reolink PoE NVR or use a 12V1A power adapter to power it.
Q: Will this camera work with rlk16-410b8, including time lapse?
A: yes. However, please notice that when you connect the camera directly to the NVR, it won't be able to use some functions like time lapse and smart home. In that case, we recommend you use it as a stand-alone camera or connect the camera via a PoE switch to the NVR.
Q: Can this camera be viewed via the reolink mobile app without being connected to a nvr ?
A: HI , yes ,it support.
Q: What Ethernet cable lengh? Is it short or do i have to purchase a long one?
A: Hi, it comes with 1Pcs 1m network cable for the initial test. If you actually need a longer installation, you need to prepare separately.
Q: Can the 5mp ip camera record without internet connection?
A: Yes. After the initial setup with an Internet connection via Reolink App/Client, the camera can record without the Internet. However, under such a situation, you may need to take the SD card out to check the recordings.
Q: What's the Working Environment for Reolink POE Cameras?
A:The POE camear works under the below environment: Operating temperature: -10°C~+55°C (14°F~131°F)
Operating Humidity: 10%~90%
Q: Hi,Yes, it is Onvif 2.1 compliant
A: Is this camera onvif compliant/compatible? if so, which protocol?
Q: How does the time lapse work with android app?
Can I set it to time lapse say for 12 hrs a day, 7 days a week? Will it record timelapse to nvr or sd card?
A: yes, you can select how long you want the camera to capture before it automatically finishes,
the captures will be stored on the SD card.
For detailed setting steps, please refer to this link: https://support.reolink.com/hc/en-us/articles/900002834583
